THK Linear Motion Guide HR918UU+70LH
Brand: THK
Item number: HR918UU+70LH
Description

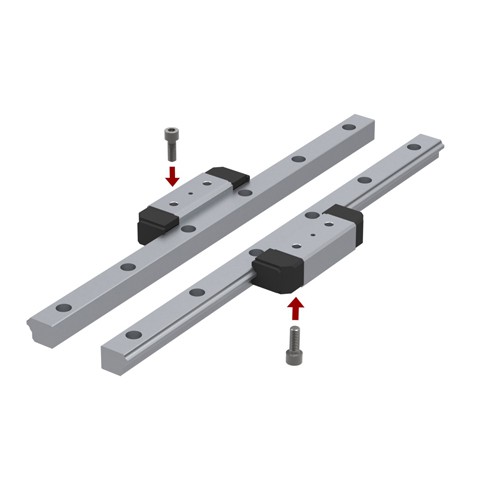

Model HR is easier to adjust a clearance and highly capable of absorbing a mounting error. When the two rails are mounted in parallel, each row of balls is placed at a contact angle of 45 degree so that the rated loads applied to the LM block are uniform in the four directions (radial, reverse radial and lateral directions).
The technical data for THK HR918UU+70LH
| Model No. | Outer dimensions | Block dimensions | Rail dimensions | Basic load rating | ||||||||||||||||||
| Radial | ||||||||||||||||||||||
| Height M |
Width W |
W0 | Length L |
B1 | C | H | S | h2 | L1 | T | K | S | Greasing hole d |
D1 | Width W1 |
W4 | Height M1 |
Pitch F |
d1xd2xh | Dynamic rating C |
Static rating C0 |
|
| mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | kN | kN | ||
| HR918 | 8.5 | 11.4 | 18 | 45 | 5.5 | 15 | – | M3 | – | 25 | 7.5 | 8 | 1.5 | – | 6.7 | 3.5 | 8.7 | 6.5 | 25 | 4.5×7.5×3 | 2.82 | 3.48 |
| Model No. | Outer dimensions | Block dimensions | Rail dimensions | Basic load rating | ||||||||||||||||||
| Radial | ||||||||||||||||||||||
| Height M |
Width W |
W0 | Length L |
B1 | C | H | S | h2 | L1 | T | K | S | Greasing hole d |
D1 | Width W1 |
W4 | Height M1 |
Pitch F |
d1xd2xh | Dynamic rating C |
Static rating C0 |
|
| mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | kN | kN | ||
| HR1123 | 11 | 13.7 | 23 | 52 | 7 | 15 | 2.55 | M3 | 3 | 30 | 9.5 | 10 | 2 | 5 | 9.5 | 5 | 11.6 | 8 | 40 | 3.5x6x4.5 | 4.09 | 4.93 |
| HR1530 | 15 | 19.2 | 30 | 69 | 10 | 20 | 3.3 | M4 | 3.5 | 40 | 13 | 14 | 2 | 6.5 | 10.7 | 6 | 13.5 | 11 | 60 | 3.5x6x4.5 | 7.56 | 8.77 |
| HR2042 | 20 | 26.3 | 42 | 91.6 | 13 | 35 | 5.3 | M6 | 5.5 | 56.6 | 17.5 | 19 | 3 | 10 | 15.6 | 8 | 19.5 | 14.5 | 60 | 6×9.5×8.5 | 17.0 | 18.2 |
| HR2042T | 20 | 26.3 | 42 | 110.7 | 13 | 50 | 5.3 | M6 | 5.5 | 75.7 | 17.5 | 19 | 3 | 10 | 15.6 | 8 | 19.5 | 14.5 | 60 | 6×9.5×8.5 | 20.8 | 24.3 |
As a professional Linear Motion Guide supplier, we are mainly responsible for the global sales and technical services of THK products. Our warehouses are located in HongKong and ShenZhen City, it is very convenient for demands of global market . Because there are many types of THK products, we can not upload all of them at present. If you have any demand, you can directly contact us.
