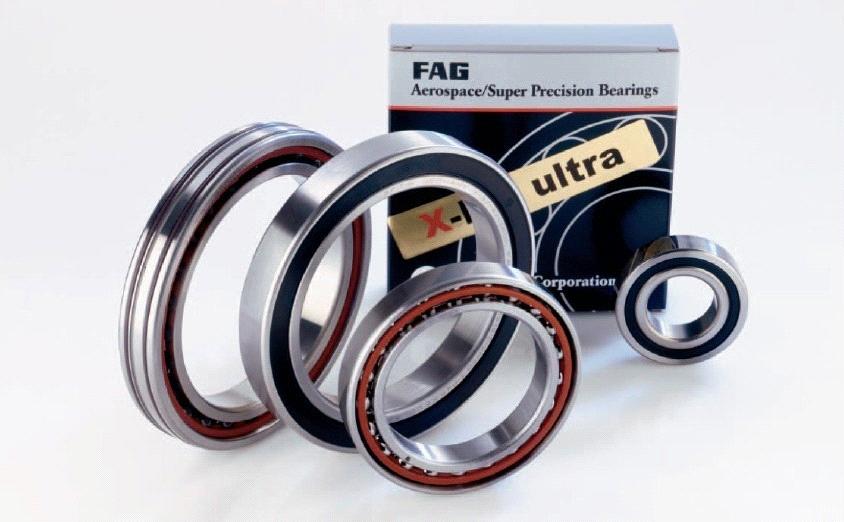

FAG HCB7005-E-2RSD-T-P4S Super Precision Angular contact ball bearing
Brand: FAG
Item number: HCB7005-E-2RSD-T-P4S
Origin: Germany
Weight: 0.064kgs
Description
Schaeffler Group Industrial brings together the industrial activities of INA and FAG. Together, the two companies have the widest product portfolio in the rolling bearing industry. With more than 40 000 products manufactured as standard, applications across some 60 industrial sectors can be covered.
main dimensions to DIN 628-1, contact angle α = 40°
The techinical sheet for FAG HCB7005-E-2RSD-T-P4S
| d | 25 mm | |
| D | 47 mm | |
| B | 12 mm |
| a | 14,4 mm | |
| Da | 42 mm | Tolerance: H12 |
| da | 30 mm | Tolerance: h12 |
| r1 min | 0,6 mm | |
| ra max | 0,6 mm | |
| ra1 max | 0,3 mm | |
| rmin | 0,6 mm | |
| α | 25 ° | Contact angle |
| m | 0,064 kg | ≈ Mass |
| Cr | 13100 N | Basic dynamic load rating, radial |
| C0r | 5400 N | Basic static load rating, radial |
| Cur | 435 N | Fatigue limit load, radial |
| nG Fett | 40000 1/min | Limiting speed for grease lubrication
The limiting speeds are based on elastically preloaded single bearings. |
| FV L | 40 N | Preload force |
| FV M | 194 N | Preload force |
| FV H | 443 N | Preload force |
| KaE L | 117 N | Lift-off force |
| KaE M | 573 N | Lift-off force |
| KaE H | 1338 N | Lift-off force |
| ca L | 55,4 N/µm | Axial rigidity |
| ca M | 96,9 N/µm | Axial rigidity |
| ca H | 133 N/µm | Axial rigidity |
FAG Bearings have been synonymous with high quality for over 120 years. In 1883, Friedrich Fischer designed a ball grinding machine in Schweinfurt, Germany that, for the first time, made it possible to produce absolutely round steel balls by grinding. The invention is regarded as the foundation for the entire rolling bearing industry. There is many types of bearings, there are only a part on our website, if you need more information, pls contact us.
